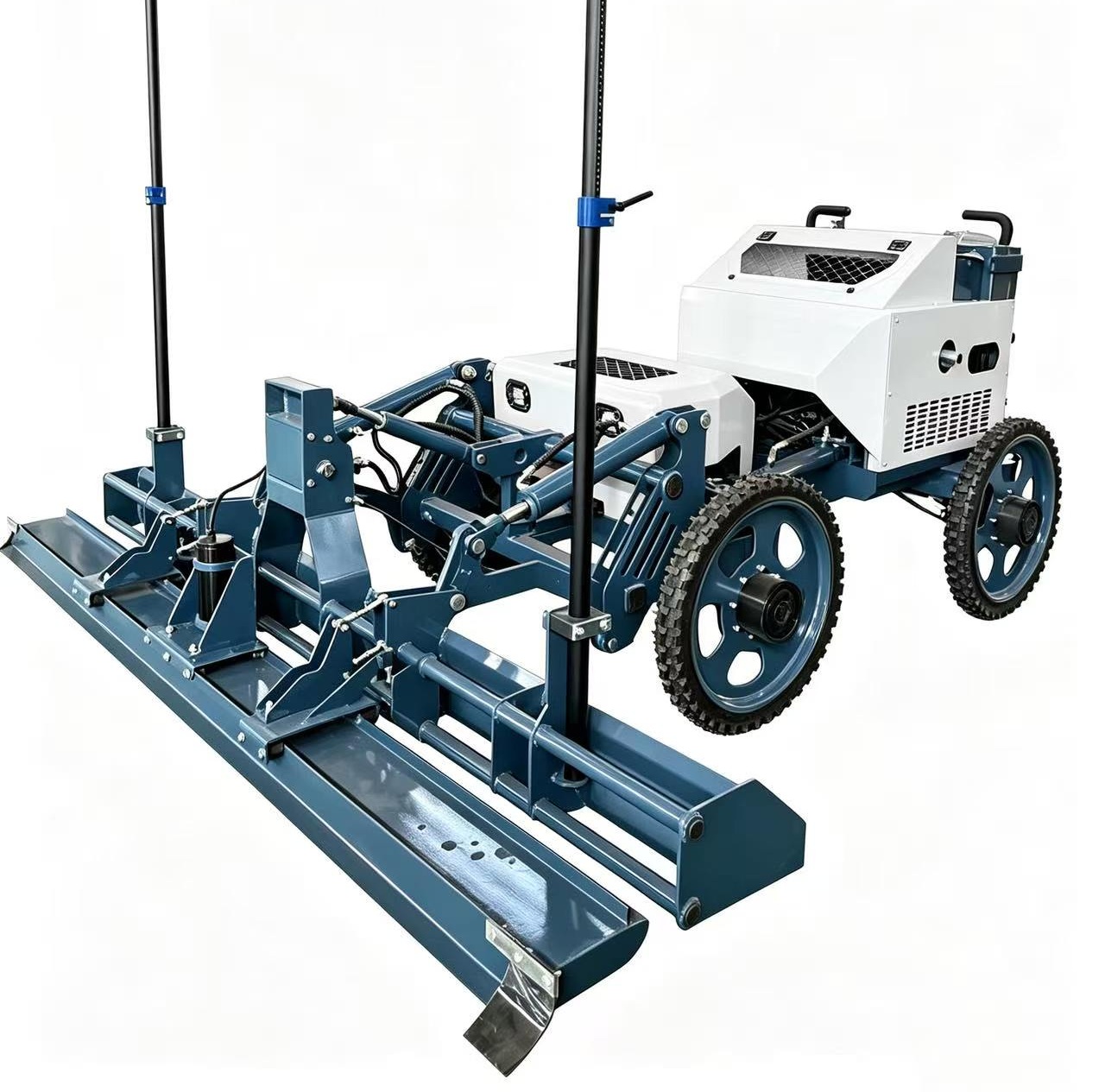

ALD‑685 Concrete Laser Screed Machine For Concrete Floor Leveling

AOLIDE‑S685 four‑wheel concrete laser screed, equipped with 23HP Briggs & Stratton gasoline engine, German Rexroth hydraulic system and Leica laser leveling system. Working width 2600mm, working efficiency 200‑500 ㎡/h, ideal for large‑area concrete floor construction.

contact
23HP Briggs & Stratton gasoline engine, 15.5kw power, low fuel consumption 3.9‑6L/h
German Rexroth full hydraulic system, 4‑wheel hydraulic drive for stable movement
Leica laser leveling system for high‑precision concrete leveling, min paving thickness 40mm
Replaceable wide tires, max ground clearance 290mm for rough job‑site ground
Electric start, easy operation, high working efficiency 200‑500 ㎡ per hour
AOLIDE‑S685 four‑wheel concrete laser screed is designed for large‑area concrete floor construction. Adopt laser control system to automatically control elevation, finish concrete spreading, vibration and leveling in one pass. Widely used for factory workshop, warehouse, supermarket and parking lot concrete floor projects.
Main Configuration
  • Engine: 23HP Briggs & Stratton gasoline engine, 15.5kw
  • Hydraulic System: German Rexroth hydraulic system, 4‑wheel hydraulic drive
  • Laser System: Leica laser leveling system
  • Working Width: 2600mm, Minimum paving thickness:40mm
  • Working Efficiency:200‑500 ㎡/h
  • Net Weight:750Kg, Gross Weight:995Kg
