S‑360 Telescopic Boom Concrete Laser Screed-奥力德工程装备

Japan YANMAR 4‑cylinder water‑cooled diesel engine, powerful & stable power output
4‑wheel hydraulic drive, multiple steering modes: 2‑wheel /4‑wheel /crab‑steering, solid tires
3500mm working width, auger spreading, 3500N vibration force for concrete compaction
Computer laser scanning system, ±1.5mm accuracy, for flat, slope and double‑slope floor
4‑auto‑leveling outriggers, built‑in high‑pressure cleaning pump for easy maintenance

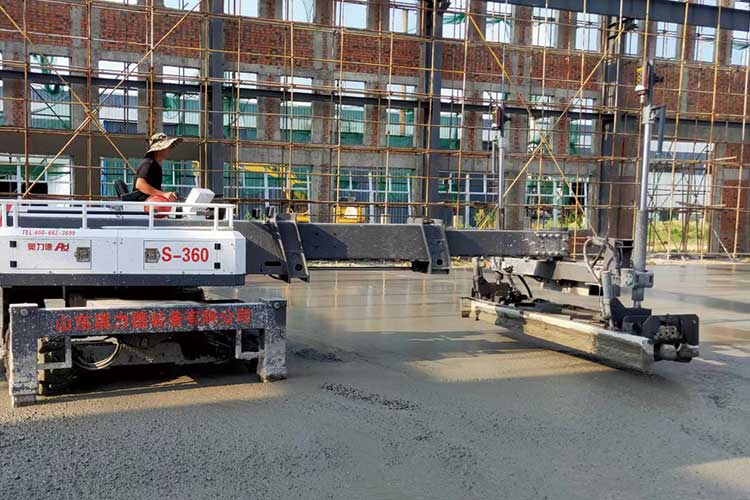

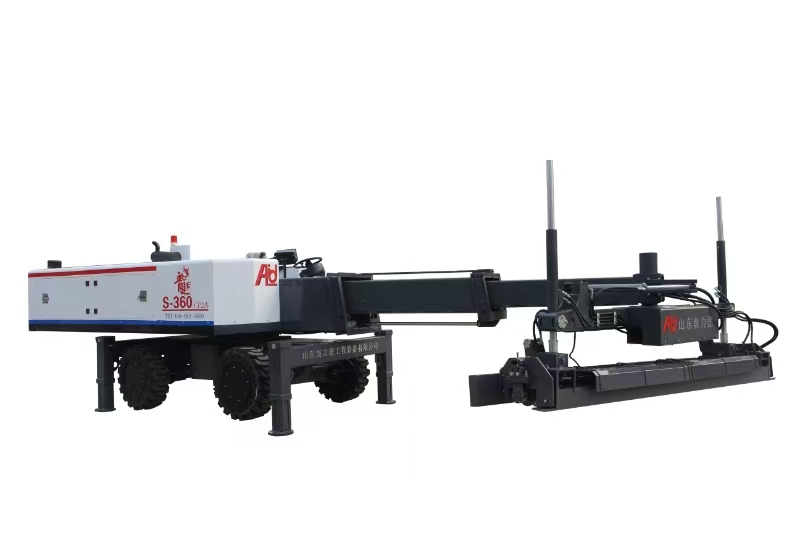

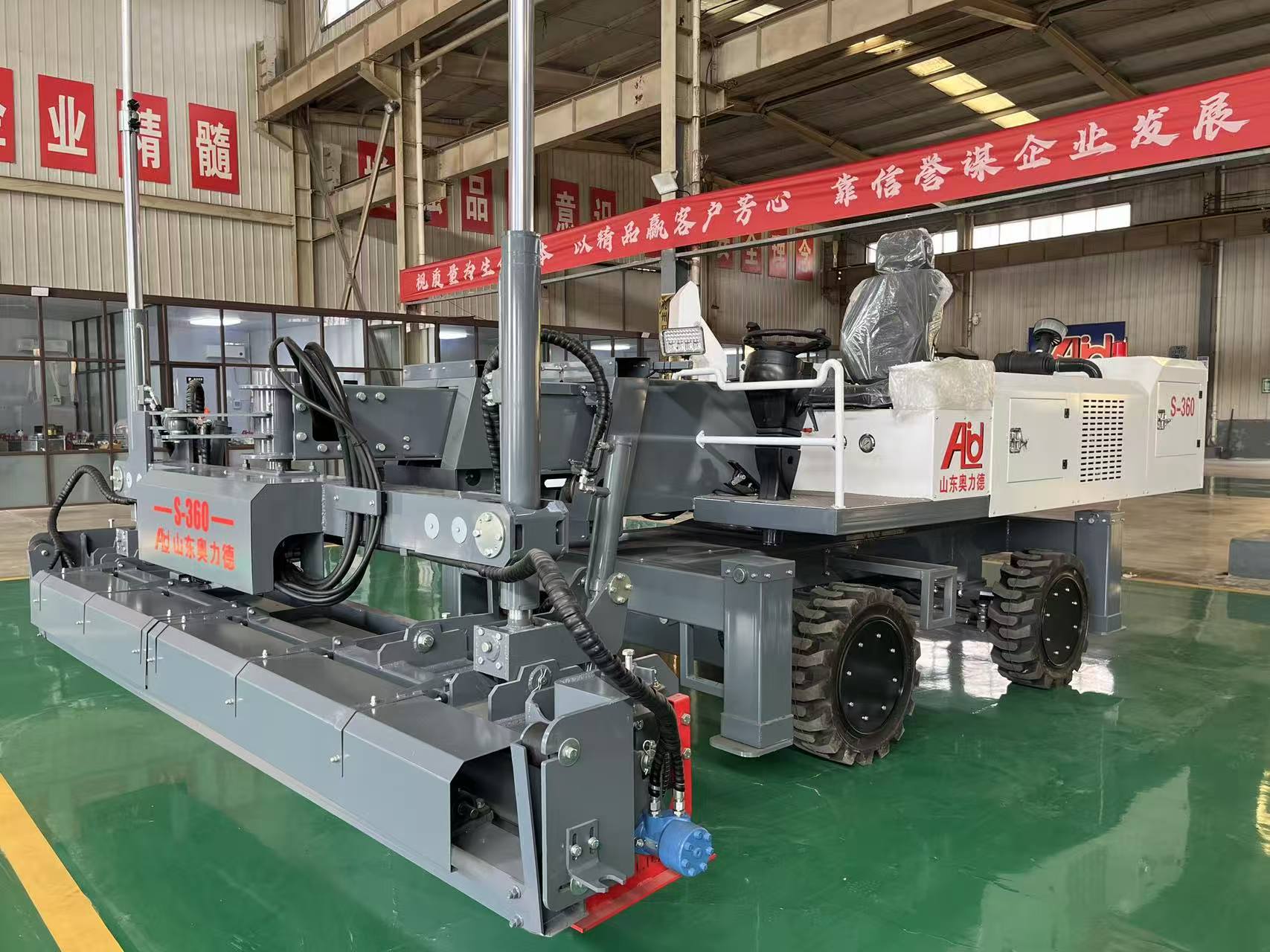

The S‑360 telescopic‑boom laser screed is a heavy‑duty four‑wheel concrete leveling machine. Powered by Japan YANMAR 4‑cylinder water‑cooled diesel engine (35 kW), it is widely used for large‑size factories, logistics parks and big‑workshop concrete floor projects.

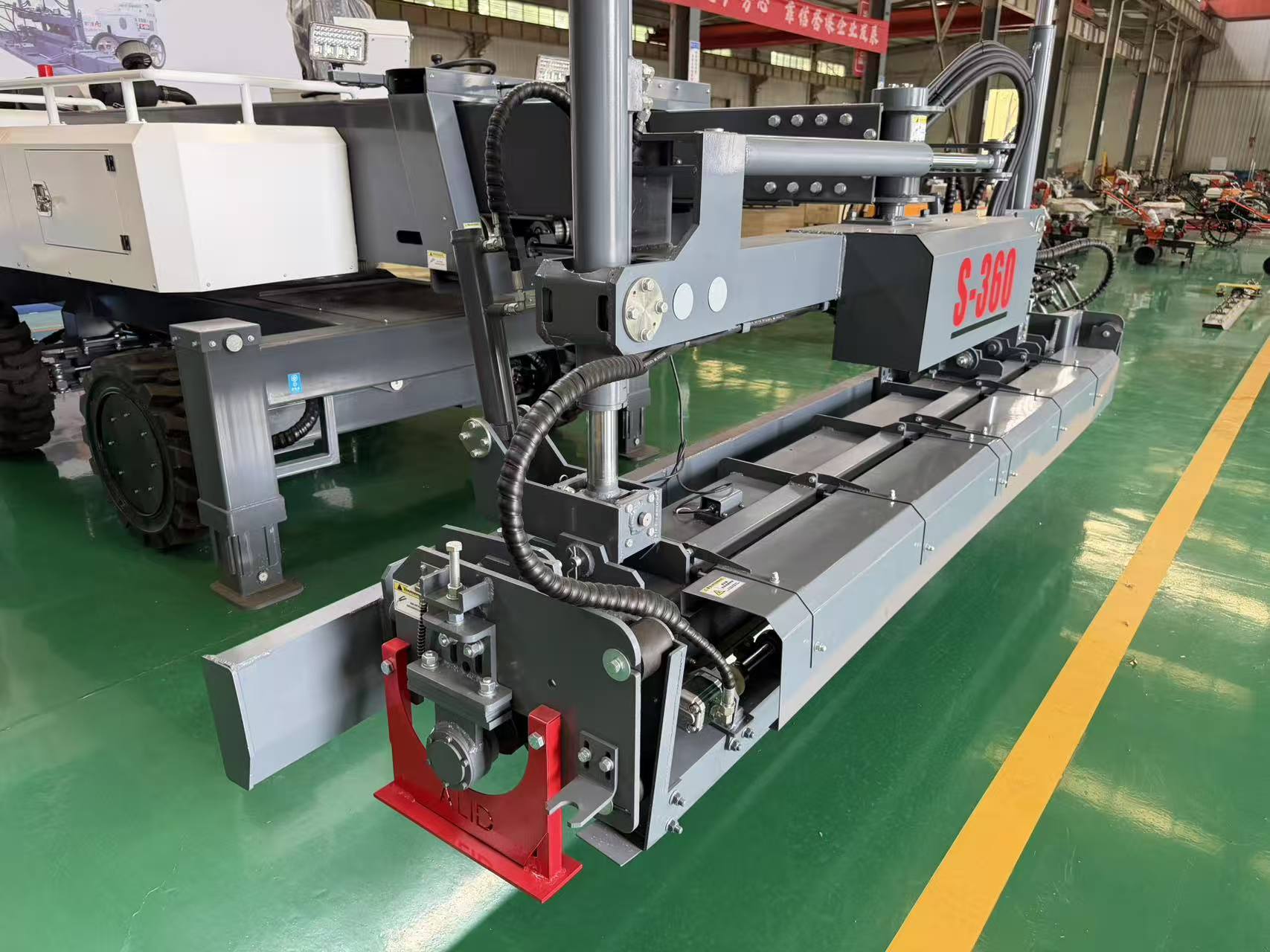

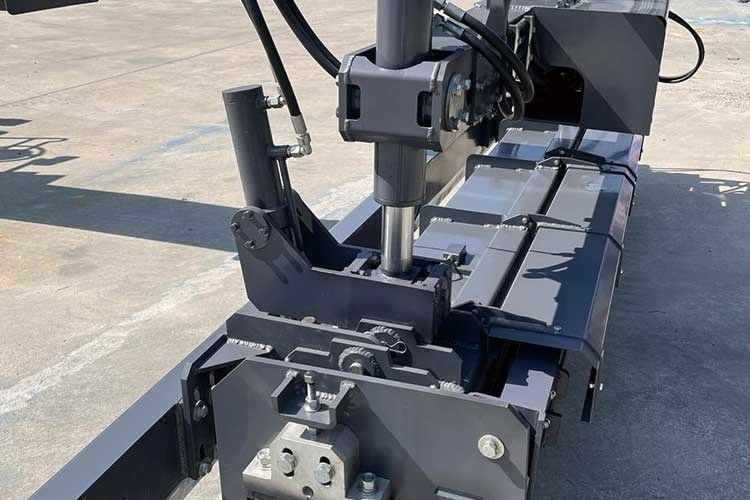

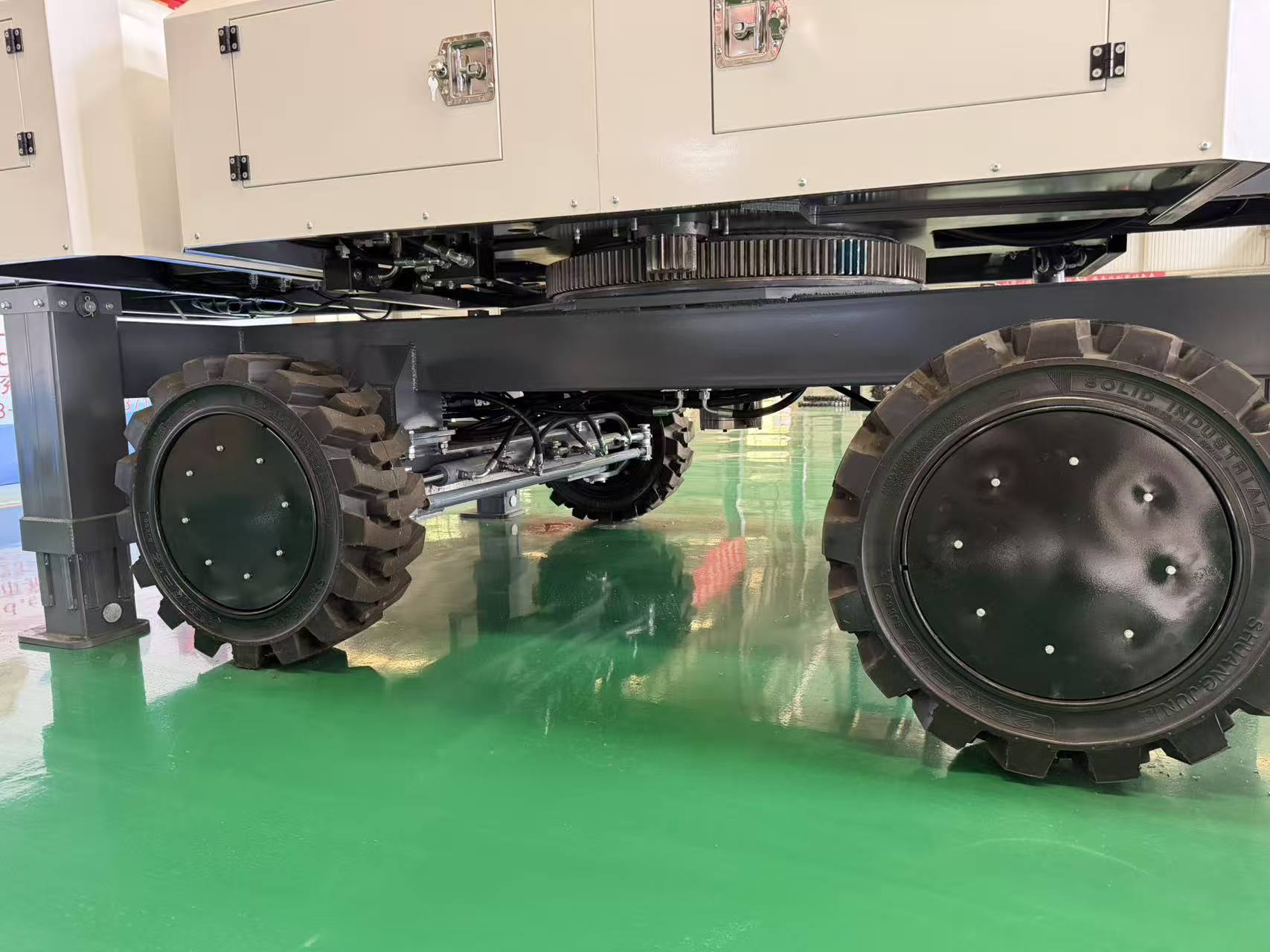

It adopts 4‑wheel hydraulic drive with multiple steering modes including two‑wheel, four‑wheel and crab‑steering. Solid heavy‑duty tires plus four auto‑leveling outriggers deliver excellent site adaptability. The telescopic screed head reaches 3500 mm working width. Hydraulic auger spreading and 3500N high‑frequency vibration compact fresh concrete efficiently.

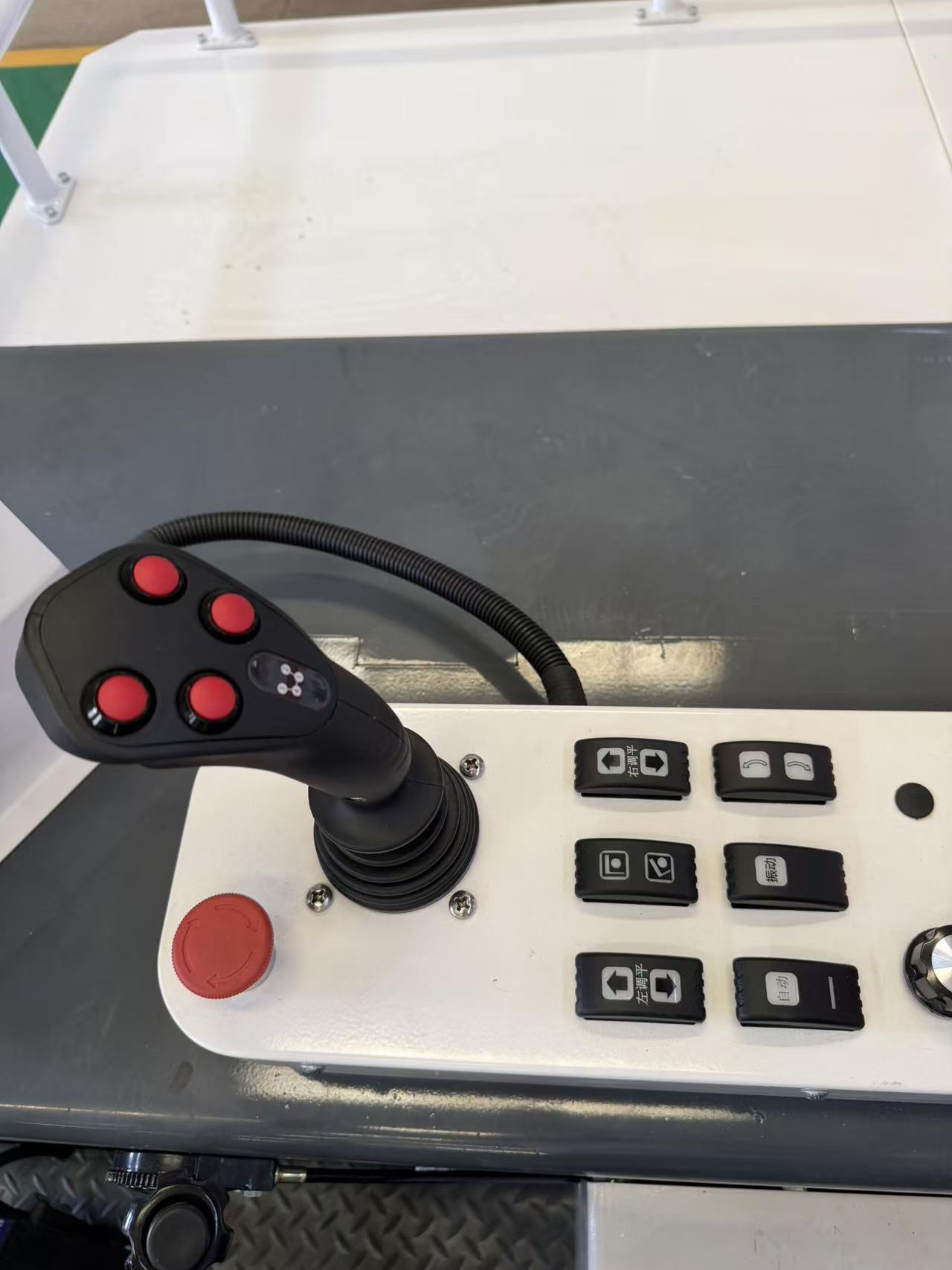

Advanced computer laser scanning system guarantees ±1.5 mm leveling accuracy. Flat, single‑slope and double‑slope floors are all available. 120L large‑capacity fuel tank extends continuous working time. Built‑in 3MPa high‑pressure washing pump simplifies daily cleaning. Joystick and steering‑wheel control with stepless speed change brings comfortable operation experience.

Main Parameters

Engine: Japan YANMAR 4‑cylinder water‑cooled diesel, 35 kW
Drive: 4‑wheel hydraulic drive; Steering: 2‑wheel /4‑wheel /crab‑steering
Working width:3500 mm; Vibration force:3500N; Vibration frequency:65Hz
Leveling accuracy: ±1.5 mm; Support flat / slope / double‑slope
Travel speed:0‑5 km/h; Working efficiency:20㎡/min
Weight:6800 kg; Dimension:540041502150 mm

Applications

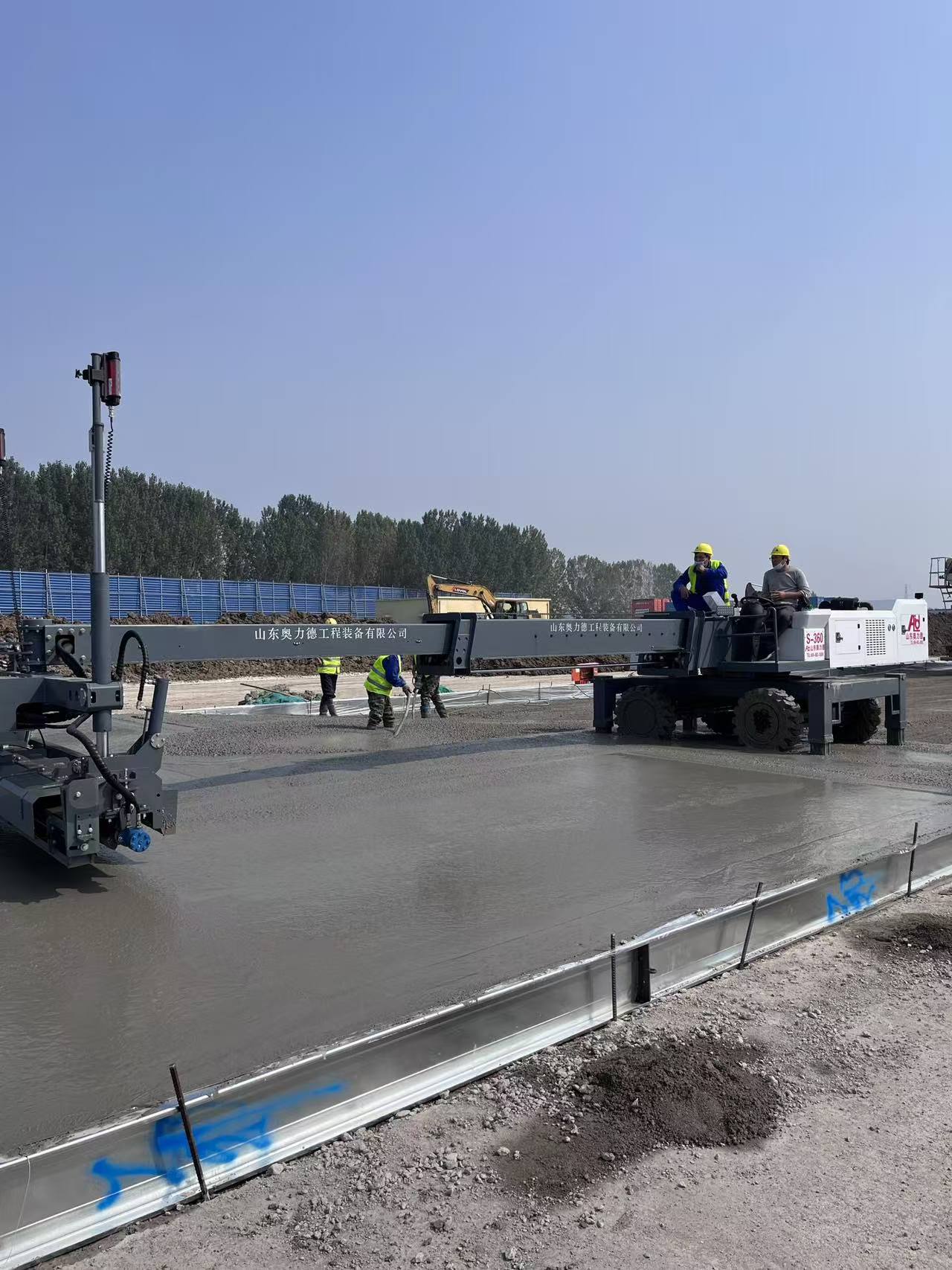

Large factory building, logistics warehouse, parking lot and other large‑area industrial concrete floor works.
