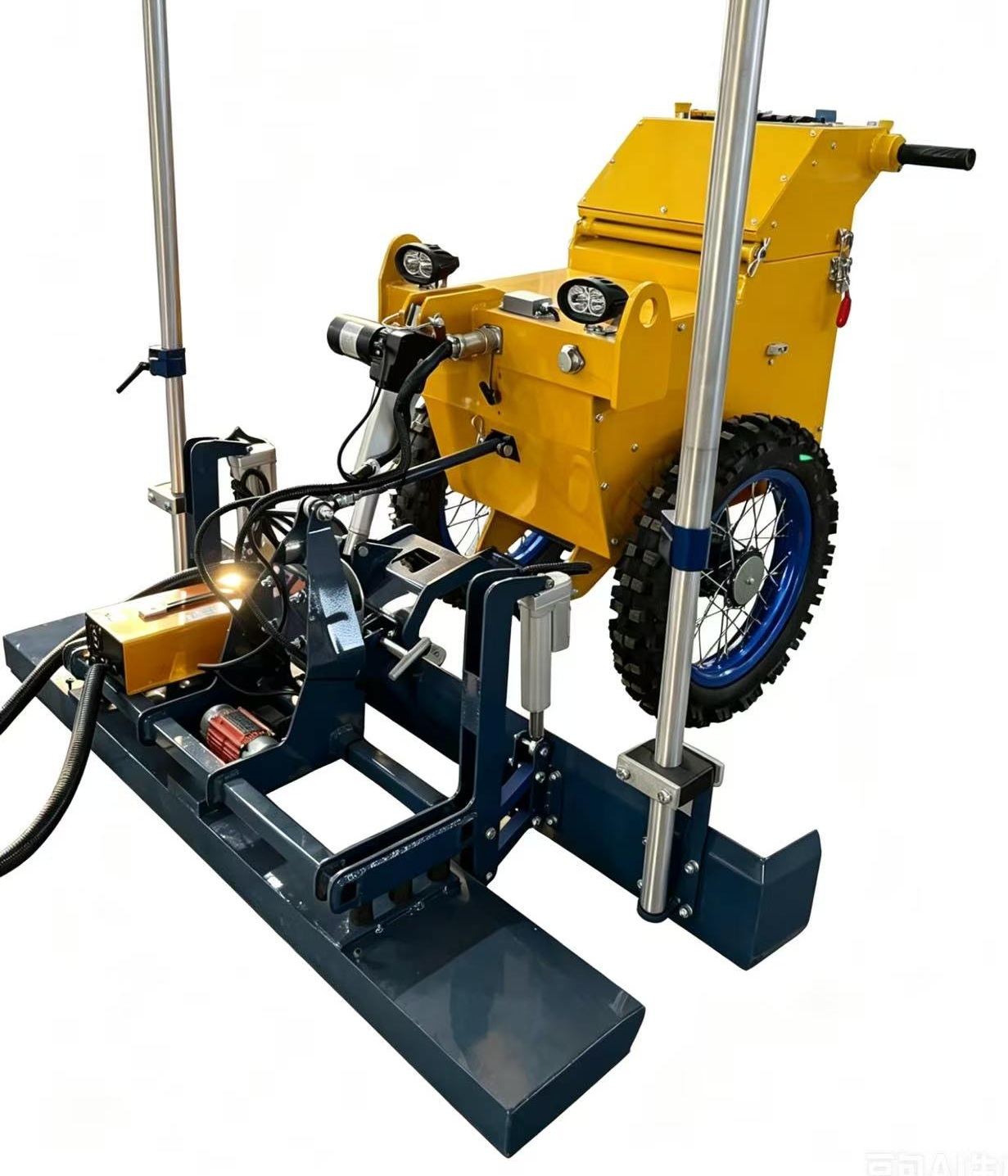

Mini‑130 Hand‑push Concrete Laser Screed Machine For Floor Construction

Mini‑130 hand‑push concrete laser screed is small‑size leveling machine specially designed for floor‑slab construction. Powered by 48V 128AH lead‑acid battery, equipped with dual‑laser sensors and dynamic tracking algorithm. Only 100kg light weight, works for indoor floor, basement, narrow‑space concrete projects, continuous working time ≥4 hours.

contact
Compact & lightweight structure: Only 100kg total weight, small dimension, easy to transport upstairs for floor‑slab construction
Dual‑laser sensor leveling: Positioning accuracy ±1.5mm/10m with dynamic tracking algorithm, guarantee high floor flatness
DC battery power supply: 48V 128AH lead‑acid battery, zero exhaust gas, safe for indoor closed‑space work, continuous working ≥4h
Powerful vibration & slurry lifting: 75kg vibration force, max slurry lifting depth 130mm, fit for 4‑175mm concrete paving thickness
Wheeled hand‑push operation: Optimum working speed 5‑10m/min, ideal for building floors, basements and small‑size workshops
Mini‑130 hand‑push laser screed is compact concrete leveling machine specially developed for indoor building floor slabs. Light‑weight and small‑size, it solves the problem that large laser screeds cannot be transported upstairs. Adopted dual‑laser sensors plus dynamic tracking algorithm for body balance control, positioning accuracy reaches ±1.5mm per 10 meters. Driven by 48V lead‑acid battery with zero exhaust emission, it is safe for enclosed indoor environment. Powerful vibration system finishes concrete slurry lifting, compaction and leveling in one pass. Widely used for building floor slabs, basements and small‑workshop concrete floor projects.
Main Configuration

‑ Leveling System: Dual‑laser sensor, dynamic tracking algorithm, accuracy ±1.5mm/10m

‑ Power: DC‑48V,128AH lead‑acid battery, continuous working ≥4h

‑ Drive Mode: Wheeled hand‑push

‑ Vibration force:75kg (4700rpm/78hz)

‑ Paving thickness: Min ≥4cm, Max 175mm; Max pulp‑lifting depth 130mm

‑ Equipment weight:100kg

‑ Working speed: Optimum 5‑10m/min, max driving speed 2.9km/h
Advantages

✅ Light‑weight compact body, transport upstairs easily for floor‑slab jobs

✅ Battery driven, zero exhaust, safe & eco‑friendly for indoor closed space

✅ High‑precision dual‑laser leveling with dynamic balance algorithm

✅ Strong slurry‑lifting & compaction capacity for various concrete thickness

✅ Easy‑operated hand‑push design, perfect for floors, basements and small workshops
